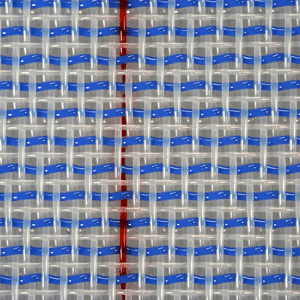

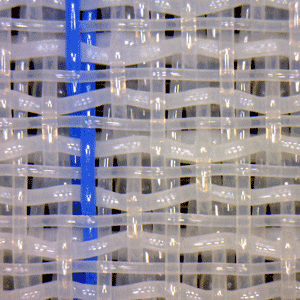

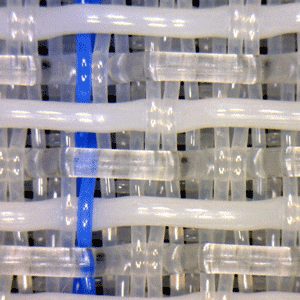

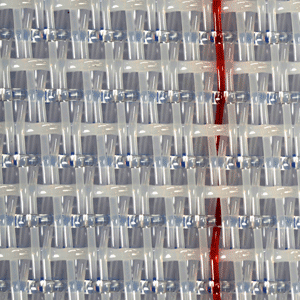

Commonly known as 2.5-layer forming fabric, extra support double layer forming fabrics are to further improve the characteristics of double-layer design. A 2.5 layer forming fabric is a standard double layer forming fabric with an additional weft yarn on the sheet side for an an improvement in sheet formation, smoothness, reduction of wire mark and better cleaning of the showers.
Board and Packaging paper
CXD series are coarse mesh forming fabrics designed with extra cross direction (CMD) yarns for improved sheet support.
- Weft yarn ratio of 3:2 to increase wear resistance and stability.
- Increased weft yarn diameter and long float on machine side providing good life potential.
- Good drainage capacity.
CXH series is design of medium mesh to increase yarn density for enhanced fiber support index.
- High retention of fibers, fines and fillers.
- High drainage capacity.
- Long float on machine side providing good life potential
Tissue paper
CWF series are designed of 8 shaft with fine yarns to optimize performance for machines producing tissue paper.
- High fiber support index
- Excellent sheet formation
- Low caliper and good drainage capacity
- Good life potential
Writing and Printing paper
CYS series are 8/16 shed double layer design with extra weft yarns for better fiber support and sheet formation.
- Increased yarns density to give better fiber support index.
- High drainage capacity
- Long float on machine side providing good wear resistance.
